Underground Pipe Locating: How a 512Hz Camera Sonde Works

Last Updated: September 8, 2026

Finding a defect on video is only one part of planning a repair.

A camera may show roots after 60 feet of cable travel, but that reading does not tell you the straight-line distance from the access point, the direction of the pipe, or its burial depth.

Recording a locating result alongside the footage helps a repair professional connect the observation with the site. Uncertain readings should remain clearly marked as uncertain.

This guide explains the difference between video inspection, camera-head locating and broader utility locating, so you can select the equipment the job actually needs.

What a 512Hz Sonde Actually Does

A sonde is a small transmitter in or near a compatible camera head. When activated, it emits an electromagnetic signal at its specified frequency, such as 512 Hz. It does not transmit coordinates or a map of the whole drain.

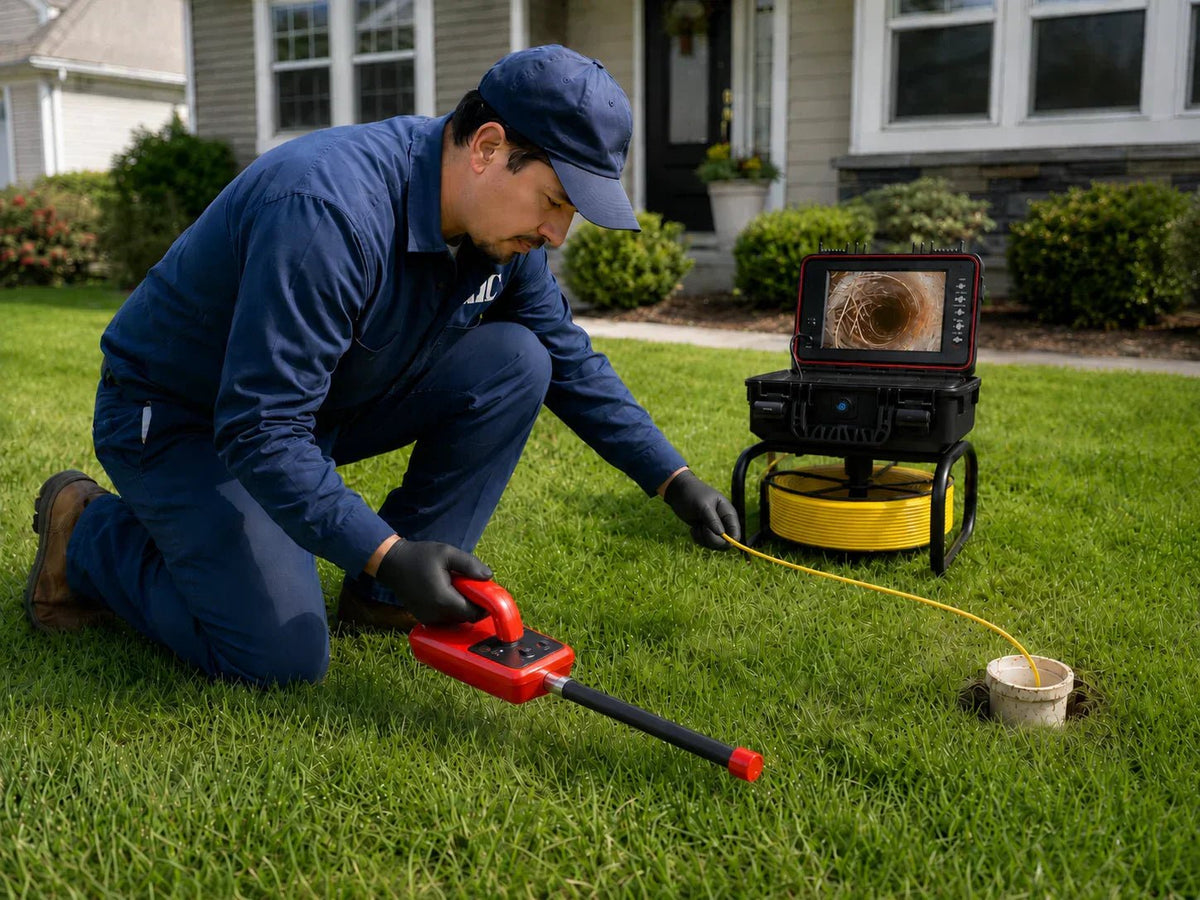

A compatible receiver detects that signal above ground. Follow the receiver manufacturer’s sonde-locating procedure, checking signal shape and consistency rather than relying on a single peak. The result estimates the camera head’s position; it represents the observed defect only when the head is positioned at that finding.

Position and depth estimates depend on transmitter power, orientation, pipe material, interference and site conditions. No fixed “within inches” accuracy applies to every job. Recheck questionable readings before using them for repair planning.

If you are buying a camera with locating capability, distinguish a built-in transmitter from an included receiver. A transmitter-only camera can still inspect and record, but above-ground locating requires a compatible receiver. Check the selected kit and receiver price separately.

The Difference Between Transmitter-Only and Full Locating Systems

A common point of confusion when buying sewer inspection equipment is this: many cameras are advertised as "512Hz" but only include the transmitter embedded in the camera head. The receiver — the handheld wand you use above ground to locate the camera — is sold separately or not at all.

If you're comparing specifications and both cameras say "512Hz sonde," ask one follow-up question: Does this include the receiver?

Powerwill PW9D2 has variants with and without a 512Hz locator, and variants with and without a distance counter. A model name alone does not establish what is included. Select the required combination and review its contents before ordering.

The Powerwill PW10DX1 currently lists 60 m and 75 m cable options with or without a locator. Its cable length describes inspection reach, not locating depth. Check head dimensions, bends and receiver specifications against the job.

When 512Hz Locating Changes the Job

These three situations can benefit from documenting camera-head locations:

1. Residential laterals with no clear pipe path

When existing drawings are missing or unreliable, locate the head at several accessible points along the inspected run and record the results. Those observations can help describe the route; a single locate does not trace the entire pipe.

2. Root intrusions near property boundaries

Near a property boundary, record the video finding and the estimated head location separately. Neither a camera image nor a sonde reading establishes whose tree caused the roots, property ownership or repair liability.

3. Jobs where you hand off the dig to a separate crew

For a handoff to another crew, provide footage, access-point notes, surface marks and the uncertainty of the locating readings. The excavator should confirm site conditions and utility clearances rather than treating the mark as permission to dig.

512Hz vs. 33kHz: Does the Frequency Matter?

Sondes and receivers may support 512 Hz, 33 kHz or other frequencies. Confirm that both tools support the same frequency and the correct operating mode.

There is no universal rule that one frequency always reaches deeper or locates more accurately. Receiver design, transmitter output, pipe material and interference affect the usable result.

Use the specifications and instructions for the actual equipment. RIDGID’s sonde locator guidance illustrates the need for compatible locating equipment; it is not a depth or accuracy specification for a Powerwill kit.

What to Do After You Locate the Blockage

Locating is step one. Once you've marked the surface, the next priorities are documentation and maintenance.

Before retrieving the camera, save footage of the finding and note the access point, cable reading and locating result. Identify any portion that could not be inspected. Confirm the report format and scope with the client rather than assuming every job requires the same documentation.

On the maintenance side: sonde transmitters can fail if the camera head is mishandled or subjected to impact, and a failed transmitter is only noticed when you're on a job that needs locating. Regular inspection of the camera head and proper cable storage practices extend the life of the transmitter significantly. Our sewer camera maintenance guide covers the specific steps for cleaning, coiling, and storing your equipment to prevent exactly this kind of failure.

Locating vs. Full Pipe Inspection: Do You Need Both Tools?

Some contractors carry a sewer camera and a separate utility locator as two independent tools. If you're already invested in a standalone utility locator for general underground marking, that workflow can make sense.

Buying a matched kit can simplify compatibility checks, but the receiver remains a separate device with its own charging, setup and maintenance requirements. If you already own a receiver, verify compatibility before buying another one.

For a deeper look at how these tools compare and when the two-tool approach makes more sense, see our guide: Sewer Line Locator vs. Pipe Camera: Do You Need Both or Just One?

And if you're evaluating equipment specifically for pre-dig utility marking work, Underground Pipe Locator: How to Find Your Sewer Line Before You Dig covers the full workflow from cleanout access to surface marking.

FAQ

Do you need both the sonde and the receiver?

Yes. Above-ground camera-head locating requires an active compatible sonde and a receiver that supports its frequency and sonde mode. The reading estimates head position; it is not a guaranteed excavation point.

What is the best next step after reading this guide?

Use the locator-ready sewer camera page to compare complete systems, then review Underground Pipe Locator if you need the broader pre-dig workflow.

Does a camera locate replace utility clearance?

No. A camera sonde only supports locating the head along the inspected pipe. Before excavation, follow the 811 process and confirm whether additional private utility locating is needed. Do not use a camera locate as clearance for all buried services.

The Bottom Line

Compare equipment cost with how often you need footage and surface locating. Avoid assuming that a single kit purchase will eliminate all excavation uncertainty.

Use the video and the locating reading together: one documents a visible condition, while the other helps relate the head position to the surface. Neither replaces a qualified repair assessment.

Review Powerwill PW9D2 locator-included variants for the required cable and counter combination, or compare sewer camera systems for other reach and handling options. Check receiver inclusion and specifications before ordering.

Browse the full Powerwill sewer camera lineup or use the selection guide to match the right system to your typical job type.
