Every experienced plumber has a story about the wrong dig.
You push the camera down 60 feet, spot the root intrusion, pull the camera back — and then you spend the next 20 minutes figuring out where on earth that blockage actually sits underground. You mark a spot. You dig. You're off by four feet.
That four-foot mistake cost your client a bigger trench. It cost you two extra hours. And it cost your reputation the kind of credibility that takes months to rebuild.
This is what life looked like before 512Hz sonde technology became standard in professional-grade sewer cameras. If you're still working without it — or working with a camera that has a transmitter but no receiver — this article is for you.
What a 512Hz Sonde Actually Does
A sonde (sometimes called a transmitter or beacon) is a small electronic device built into the camera head that broadcasts a radio signal at 512 Hz. While your camera is inside the pipe recording footage, the sonde is simultaneously broadcasting its exact position outward through the ground.

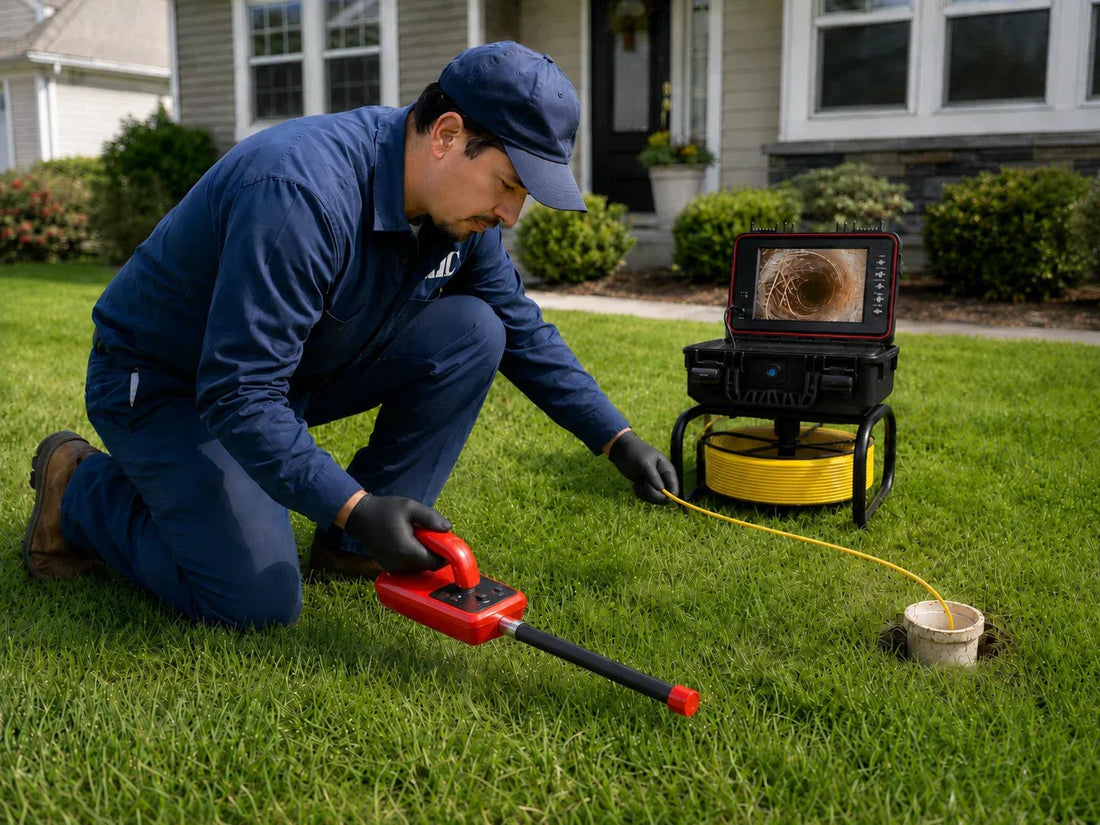

Above ground, a compatible receiver — sometimes called a locator — picks up that signal and triangulates the camera head's location in real time. Walk along the surface with the receiver and it guides you directly above the camera. When the signal peaks, you're standing directly over the blockage.
No guessing. No tape measures approximating "about 40 feet in and probably toward the street." The receiver tells you within inches where to mark the ground.
This is why, if you're shopping for a sewer camera with locating capability, the distinction between a camera that has a 512Hz transmitter only versus one that ships with both the transmitter and the receiver matters enormously. The transmitter alone is useless without a compatible receiver — and receivers can run $200–$400 if you buy them separately.
The Difference Between Transmitter-Only and Full Locating Systems
A common point of confusion when buying sewer inspection equipment is this: many cameras are advertised as "512Hz" but only include the transmitter embedded in the camera head. The receiver — the handheld wand you use above ground to locate the camera — is sold separately or not at all.
If you're comparing specifications and both cameras say "512Hz sonde," ask one follow-up question: Does this include the receiver?
The Powerwill L09D2 ships as a complete system: transmitter built into the camera head, receiver included in the kit. You push the camera in, you walk above with the receiver, and you mark the spot. Everything needed for precise locating is in one purchase.
For deeper runs — municipal laterals, commercial properties, or any job where your line extends beyond 150 feet — the 10DX1 carries 246 feet of cable with the same full locating system built in. The 10-inch IPS monitor also makes reviewing footage in outdoor light conditions significantly easier than 7-inch screens.
When 512Hz Locating Changes the Job
Here are the three scenarios where precise sonde location makes a measurable difference in your workflow:
1. Residential laterals with no clear pipe path
Older homes — particularly those built before 1970 — rarely have accurate as-built drawings. The pipe may run at an angle to the street, curve around a foundation addition, or dip under a driveway at an unexpected point. Without a locator, your only guide is the distance counter on the camera. With a receiver, you trace the actual path.
2. Root intrusions near property boundaries
When roots from a neighbor's tree are the source of the blockage, you need to document not just the footage but the exact surface location. This matters for insurance claims, permit applications, and client negotiations about who is responsible for the repair. A pinpoint mark on the ground — confirmed by the receiver — is evidence. An estimate is not.
3. Jobs where you hand off the dig to a separate crew
If you're the inspector and another team is doing the excavation, you cannot be on-site to guide every shovel. A precise surface mark, confirmed by the sonde receiver before you leave, ensures the dig crew opens the ground in exactly the right place.
512Hz vs. 33kHz: Does the Frequency Matter?
You'll occasionally see sewer cameras advertised with different sonde frequencies — 33 kHz is the other common standard. Here's the practical difference:
512 Hz signals travel deeper through soil and are less affected by interference from metal pipes, electrical lines, and reinforced concrete. This makes 512 Hz the professional standard for most residential and light commercial applications.
33 kHz has shorter range but can be more precise in very shallow applications. For most sewer work — where you're typically 3 to 15 feet below grade — 512 Hz is the correct choice, and the one compatible with the widest range of utility locating equipment already in use by your clients and municipalities.
What to Do After You Locate the Blockage
Locating is step one. Once you've marked the surface, the next priorities are documentation and maintenance.
On the documentation side: before you pull the camera out, take still frames or save the DVR recording of the footage at the blockage point. A time-stamped recording from a camera with DVR capability is what you give the client, their insurance company, or the permit office. It's not optional for professional-grade work anymore.
On the maintenance side: sonde transmitters can fail if the camera head is mishandled or subjected to impact, and a failed transmitter is only noticed when you're on a job that needs locating. Regular inspection of the camera head and proper cable storage practices extend the life of the transmitter significantly. Our sewer camera maintenance guide covers the specific steps for cleaning, coiling, and storing your equipment to prevent exactly this kind of failure.
Locating vs. Full Pipe Inspection: Do You Need Both Tools?
Some contractors carry a sewer camera and a separate utility locator as two independent tools. If you're already invested in a standalone utility locator for general underground marking, that workflow can make sense.
But if you're building your first kit or replacing aging equipment, a camera system with integrated 512Hz transmitter and receiver eliminates one additional device to maintain, charge, and calibrate. It also simplifies training for technicians who are new to locating work.
For a deeper look at how these tools compare and when the two-tool approach makes more sense, see our guide: Sewer Line Locator vs. Pipe Camera: Do You Need Both or Just One?
And if you're evaluating equipment specifically for pre-dig utility marking work, Underground Pipe Locator: How to Find Your Sewer Line Before You Dig covers the full workflow from cleanout access to surface marking.
The Bottom Line
The cost of a wrong dig — in labor, in client trust, in rework — is almost always more than the price difference between a camera with locating and one without it.
512Hz sonde technology has been the professional standard for a reason: it turns an approximate problem into a precise one. You stop estimating and start confirming.
If you're ready to eliminate the wrong-dig from your workflow, the Powerwill L09D2 is the complete entry point — transmitter and receiver included. For longer runs and larger-diameter pipes, the 10DX1 with 246-foot cable handles the jobs where depth and precision both matter.
Browse the full Powerwill sewer camera lineup or use the selection guide to match the right system to your typical job type.
