Best Yard Drainage Systems in 2026: French Drain vs. Catch Basin vs. Dry Well
Michael Carter
0 comments

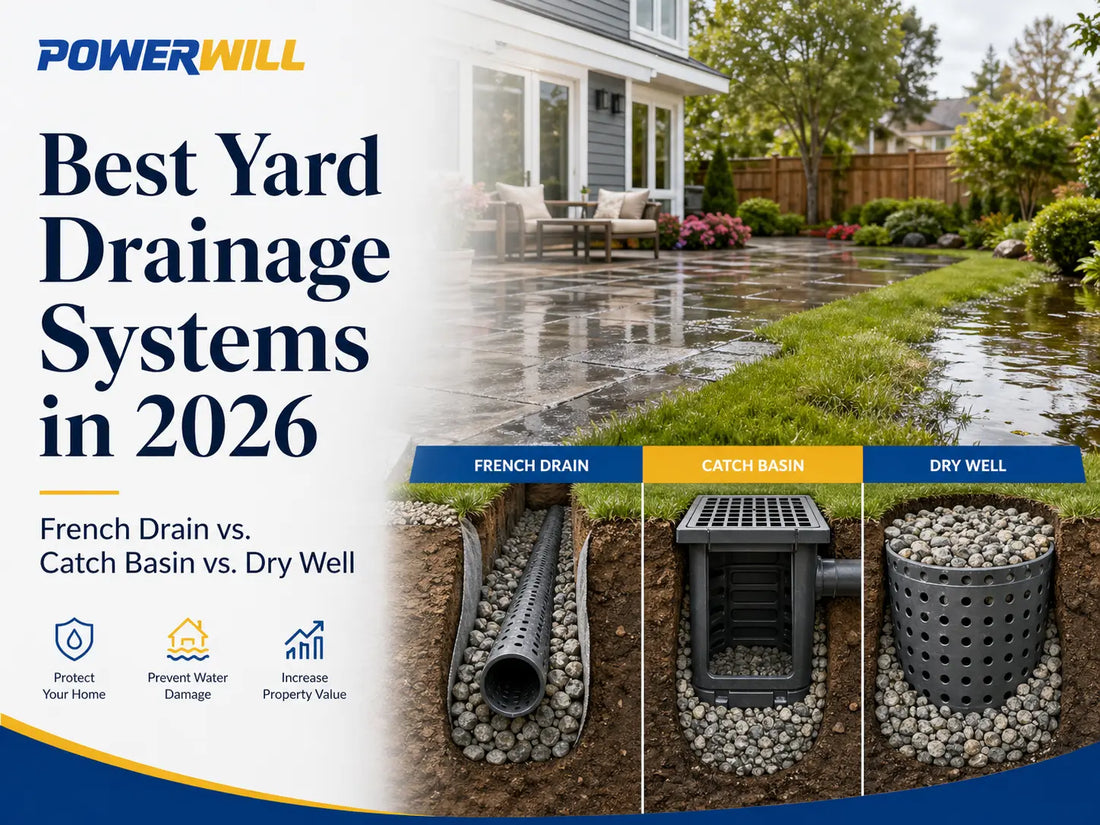

Cover illustration: conceptual drainage options, not an installation drawing or inspection evidence.
The best yard drainage system in 2026 depends on the way water moves through your property, not on which product is most popular online. Angi's 2026 cost guide says French drains often cost $20 to $50 per linear foot, catch basins usually cost $600 to $2,000 installed, and dry wells often range from $1,000 to $4,000. This Old House says French drains are best for distributed wet areas, while catch basins and yard drains are better for visible collection points, and dry wells help where there is no simple place to discharge water. In other words, each system has a real job, and most bad drainage projects happen when homeowners choose the wrong job description.
Drywell vs. Catch Basin: Which Job Needs Doing?
A catch basin collects surface runoff and sends it into a drain pipe; a dry well temporarily stores collected runoff and lets it infiltrate surrounding soil. The choice is not always either/or. A catch basin can feed a properly designed dry well. Start by separating the intake problem from the water's final destination.
NDS describes catch basins as collection points connected to drain pipes. Its Flo-Well documentation describes detention and infiltration and compatibility with catch basins. Those are different functions within a residential drainage route.
On a narrow screen, scroll the comparison table horizontally.
| Decision | Catch basin | Dry well |
|---|---|---|
| Main function | Capture runoff at a surface intake. | Hold runoff temporarily for infiltration below ground. |
| Water destination | A connected pipe leading to a suitable discharge or infiltration system. | The surrounding soil; suitability depends on the site. |
| Question before buying | Where will the outlet pipe take the collected water? | Has infiltration capacity and required storage been assessed? |
| Maintenance planning | Keep the grate and collection chamber accessible for inspection and debris removal. | Ask how the inlet, any pretreatment and inspection access will remain serviceable. |
| What it cannot settle | Whether the downstream pipe is clear or the receiving system has capacity. | Whether a blocked upstream pipe is the reason water never reaches it. |
Questions to take to a drainage contractor
- Is runoff collecting at one intake, or is the entire area staying wet?
- Can you show the proposed route and final destination on a sketch?
- What site testing supports infiltration, and how will storage and overflow be handled?
- Which existing pipe sections will be inspected before connecting new hardware?
- How will I access the grate, chamber and pipe entry for maintenance after landscaping is restored?
Ask for a site-specific explanation rather than choosing a dry well only because no outlet is obvious. A pipe camera cannot measure the soil's infiltration rate or establish the drainage system's design capacity. These questions concern private-property runoff; a public stormwater connection needs separate local review.
↑ Back to topHow French Drains, Catch Basins, and Dry Wells Differ
These three drainage systems solve three different problems. A French drain intercepts and moves water along a longer path. A catch basin captures water at one visible intake point. A dry well gives collected water a place to disperse underground when you do not have a simple downhill outlet.
Angi's 2026 drainage guide makes the distinction clearly: French drains redirect groundwater and broad soggy runs, catch basins intercept runoff at low spots, and dry wells collect and release water below grade. This Old House's lawn drainage guide echoes the same framework by recommending catch basins and yard drains for repeat collection points, French drains for broader flow problems, and dry wells when stored water must infiltrate slowly into surrounding soil.
That is why there is no honest single "best" system for every yard. The winner changes with the pattern. Ask the installer to explain which part of the water route each proposed component serves.
↑ Back to topWhen a French Drain Is Best
A French drain is best when water is moving across a longer strip of yard or surfacing through soil over distance instead of collecting in one exact point. If the side yard stays marshy from fence to fence, or if seepage keeps appearing along the same broad corridor, a French drain is usually a stronger fit than a catch basin.
This Old House says French drains help when runoff comes from a neighboring property or a poorly pitched street or driveway. That matters because many homeowners interpret broad wetness as "I need a drain somewhere," when the actual need is to intercept water before it spreads across the property. Our earlier French drain guide walks through that use case in more detail.
The tradeoff is disruption. French drains require trenching, gravel, pipe, slope planning, and a real outlet. They are not the cheapest choice, and they are easy to misapply when the real problem is just one low point or a failed downstream line.
↑ Back to topWhen a Catch Basin Is Best
A catch basin wins when water repeatedly collects in one obvious place. Patio corners, driveway edges, downspout discharge zones, and lawn depressions are classic examples. If the puddle has a clear center, a catch basin is often a cleaner and more targeted fix than a full trench system.
NDS says catch basins are designed to collect stormwater runoff and standing water from lawns, downspouts, patios, and walkways and direct it into drain pipe. That aligns with the practical homeowner rule from our catch basin article: use one when the intake point is visible and repeatable.
The limitation is just as important as the advantage. A catch basin is only as good as the outlet line attached to it. If the water has nowhere meaningful to go, the basin becomes a decorative grate over the same drainage failure.
↑ Back to topWhen a Dry Well Is Best
A dry well is best when you can collect the water but do not have a practical place to discharge it at the surface. This usually happens on flatter lots, near property-line constraints, or on homes where sending water to daylight would create a new nuisance for a neighbor or another part of the yard.
This Old House describes a dry well as a buried chamber or barrel filled with stone that holds water while it gradually drains into surrounding soil. The key phrase is "gradually drains." Dry wells are not magic. They depend on soil that can infiltrate water and enough storage volume to avoid constant overflow.
That means dry wells are not first-choice systems for every heavy-clay property or every storm event. They are useful when runoff can be captured and soil conditions cooperate, but they need realistic expectations about volume and saturation.
↑ Back to top2026 Cost Comparison
Cost alone should not choose the system, but it should absolutely influence how carefully you diagnose the yard first. Angi's 2026 estimates, checked October 23, 2026 provides a clean side-by-side benchmark for the three systems most homeowners compare.
| System | Best For | Typical 2026 Cost | Main Risk If Misused |
|---|---|---|---|
| French drain | Long wet strips, subsurface seepage, intercepting lateral flow | $20 to $50 per linear foot; about $2,000 to $7,000 total | Trenching a yard that really only needed a point drain or grading correction |
| Catch basin | One low point, visible pooling, downspout concentration | $50 to $200 per unit; about $600 to $2,000 installed | Collecting water without solving the downstream outlet |
| Dry well | Stored infiltration where no easy outlet exists | $300 to $1,000 per unit; about $1,000 to $4,000 total | Overwhelming the soil or under-sizing storage on heavy storms |
These are third-party planning estimates, not a quote for your property. Ask for an itemized price covering excavation, connections, site preparation and restoration, and confirm whether the proposed system includes a suitable destination for the water.
↑ Back to topHow to Choose the Right System for Your Yard
The right system becomes obvious when you answer three questions in order.
Where does the water first become a problem?
If the issue begins as a broad wet strip, start with French-drain thinking. If it begins in one exact depression, think catch basin or yard drain. If you already know where to collect the water but not where to release it, start evaluating dry wells.
Where is the water supposed to go?
This is the question homeowners skip most often. A catch basin needs an outlet. A French drain needs an endpoint. A dry well needs soil that can accept the stored water. If you cannot answer the outfall question, you are not ready to choose a system.
Is there already a buried line on the property?
If yes, inspect it before you expand the system. Our published drainage cluster already shows how often homeowners misread a blocked outlet line as a need for a whole new system. That is why comparing sloped-yard drainage, standing-water fixes, and the point-drain articles together produces better decisions than shopping one product page in isolation.
Before any trenching or basin installation, call 811. The national 811 service says every digging project should be marked a few business days before work begins so buried utilities can be located safely.
↑ Back to topMaintenance and Inspection Access Before Expanding the System
If there is already buried drain pipe in the yard, document its condition before adding another intake or storage chamber. A camera inspection can reveal visible obstruction or damage in accessible sections; it cannot prove that the entire system has adequate capacity, determine precise slope from one frame, or clear a blockage.
For downspout-fed systems, use our clogged underground downspout drain checklist to organize observations. Then review underground downspout drain line repair decisions before discussing excavation. An inlet problem, a pipe problem and an infiltration problem need different next steps.
Build maintenance access into the proposal: identify removable grates or covers, permitted pipe entry points and the route to the outlet. Ask the installer for a maintenance schedule and instructions for the exact system. Keep a record of observations and any inspection video so recurring pooling can be compared with the same locations. Have a qualified professional handle inaccessible chambers, uncertain connections and persistent failures.
Before selecting inspection equipment, compare the actual pipe opening, bends, access and reach requirements with the manufacturer's specifications. Powerwill's sewer camera selection guide can help organize that discussion. Cameras inspect and document; they do not replace cleaning, repairs or professional drainage design.
Key Takeaways
- French drains, catch basins, and dry wells solve different water patterns. There is no single best yard drainage system without first understanding how the water behaves on your lot.
- French drains win on broad wet areas and lateral seepage. They are usually the best fit when the problem stretches across a longer run instead of one exact intake point.
- Catch basins win on obvious low points. They are point-capture tools, which makes them a cleaner solution for patio corners, downspout zones, and bowl-shaped depressions.
- Dry wells win when you can collect water but cannot easily send it to daylight. Their success depends on soil infiltration and realistic storage sizing.
- Inspect existing pipe before adding hardware. Visible pipe-condition evidence helps frame repair questions, but does not establish soil infiltration or overall system capacity.
FAQ - Best Yard Drainage System Questions
What is the best drainage system for a soggy yard?
Usually a French drain, but only when the wet area is broad and persistent rather than concentrated in one point. If the yard has one obvious low spot instead, a catch basin or yard drain is often the better fit.
When should I choose a catch basin instead of a French drain?
Choose a catch basin when water visibly pools in one repeat location, such as a patio corner, driveway edge, or one lawn depression. It is a point-capture system, not a broad interception system.
Is a dry well better than a French drain?
Not universally. A dry well is better when you can collect water but do not have a practical surface outlet. A French drain is better when the main job is intercepting and moving water along a broader wet path.
How much do these drainage systems cost in 2026?
Angi's 2026 guide lists French drains around $20 to $50 per linear foot, catch basins around $600 to $2,000 installed, and dry wells around $1,000 to $4,000 total. Actual cost depends on yard access, length, grade, and restoration work.
Can a Powerwill sewer camera help me choose the right yard drainage system?
Yes, if your yard already has buried drain pipe and you need to know whether it still works. A camera inspection can show whether the existing outlet path is blocked or damaged before you pay for a bigger system that ties into the same failure.
Conclusion
The best yard drainage system in 2026 is the one that matches the real movement of water on your property. French drains, catch basins, and dry wells are all good tools, but each one becomes expensive fast when it is assigned the wrong job.
If your yard already has buried drainage pipe, verify that path before you expand the system. An appropriately selected pipe camera can document accessible sections, while a drainage professional assesses the complete route and receiving conditions.
