Powerwill / Sewer Inspection Camera

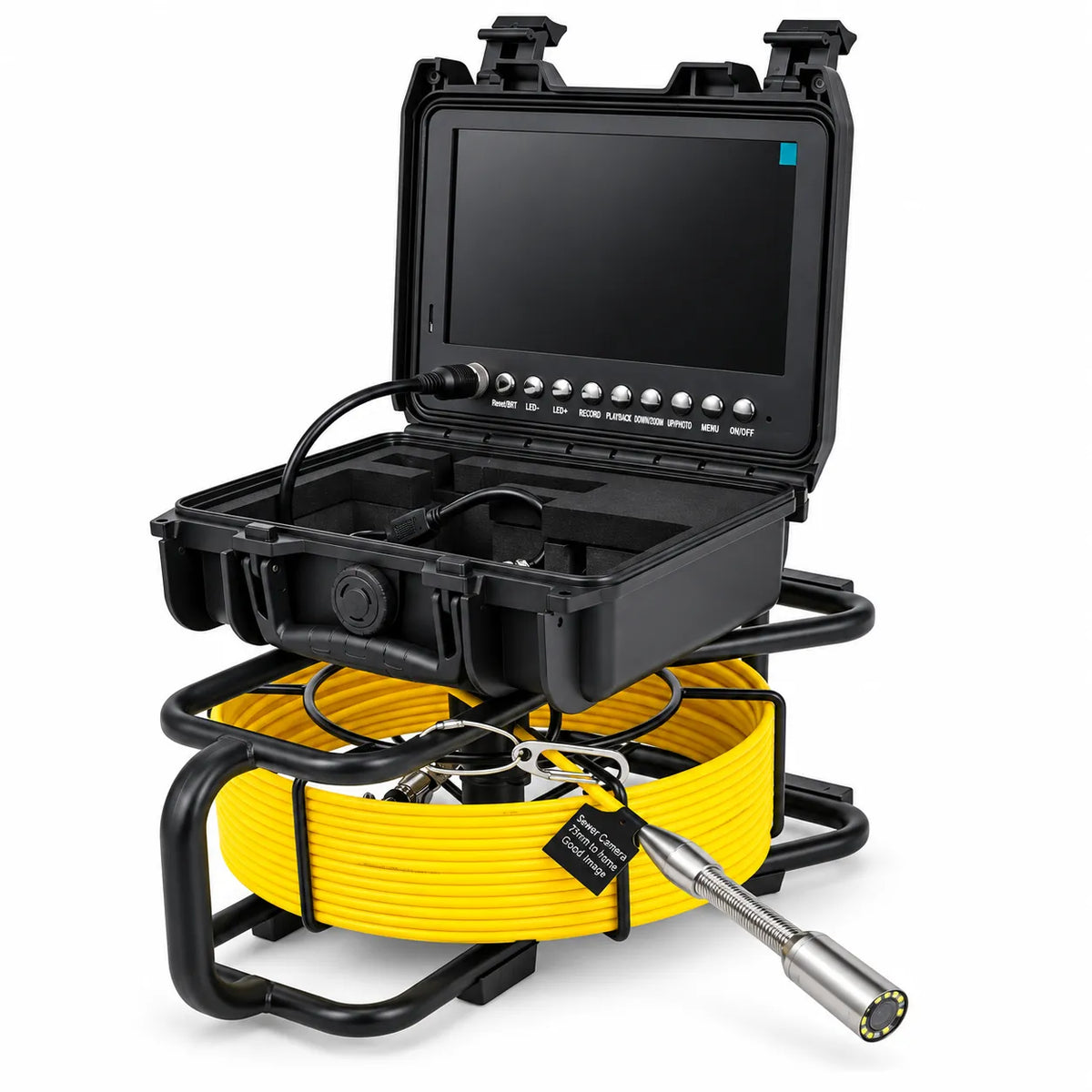

Powerwill PW9D8 Sewer Inspection Camera – 9-Inch IPS, Self-Leveling & DVR
Review the specifications below and request a quote for your preferred configuration and quantity.
View SpecificationsProduct Specifications
9-inch IPS sewer inspection camera with a self-leveling camera head, built-in DVR and 512 Hz locating transmitter support. Cable length and system configuration are available on request.
System and Display
| Model | PW9D8 |
|---|---|
| Source model | L09D8 |
| Monitor | 9-inch IPS LCD |
| Display resolution | 1024 × 600 pixels |
| Aspect ratio | 16:9 |
| Video input | CVBS |
| On-screen languages | Chinese, English, Japanese, German, French, Spanish, Portuguese, Italian and Russian |
Camera
| Camera dimensions | 23 × 108 mm; head dimension listed as 34 mm |
|---|---|
| Housing | 304 stainless steel |
| Lens cover | Sapphire glass |
| Camera resolution | 1000 TVL |
| Field of view | 120° |
| Lighting | 12 adjustable white LEDs |
| Self-leveling | Supported |
| Locating transmitter | 512 Hz sonde supported; receiver configuration on request |
| Camera protection | IP68 camera head |
| Camera supply | DC 12 V |
| Camera operating temperature | -20°C to 60°C |
Cable and Recording
| Push cable | Fiberglass |
|---|---|
| Cable length options | 15 / 20 / 30 m / approximately 49 / 66 / 98 ft |
| DVR | Built-in video recording and still-image capture |
| Recording resolution | 720 × 576 pixels |
| Video playback formats | MPEG-2 / MPEG-4 (DivX, AVI, Xvid) |
| Still image formats | JPEG / JPG |
| SD storage | 32 GB specified |
| Distance counter | Meter / foot unit switching; stated error 0.5 m |
Power
| Battery | 12 V / 5100 mAh rechargeable lithium battery |
|---|---|
| Charger input | AC 100–240 V, 50/60 Hz |
| Charger output | DC 12.6 V / 1 A |
| Stated charging time | Approximately 2 hours at 20°C |
| Stated operating time | Approximately 6 hours at 20°C |
