Powerwill / Articulating Borescope

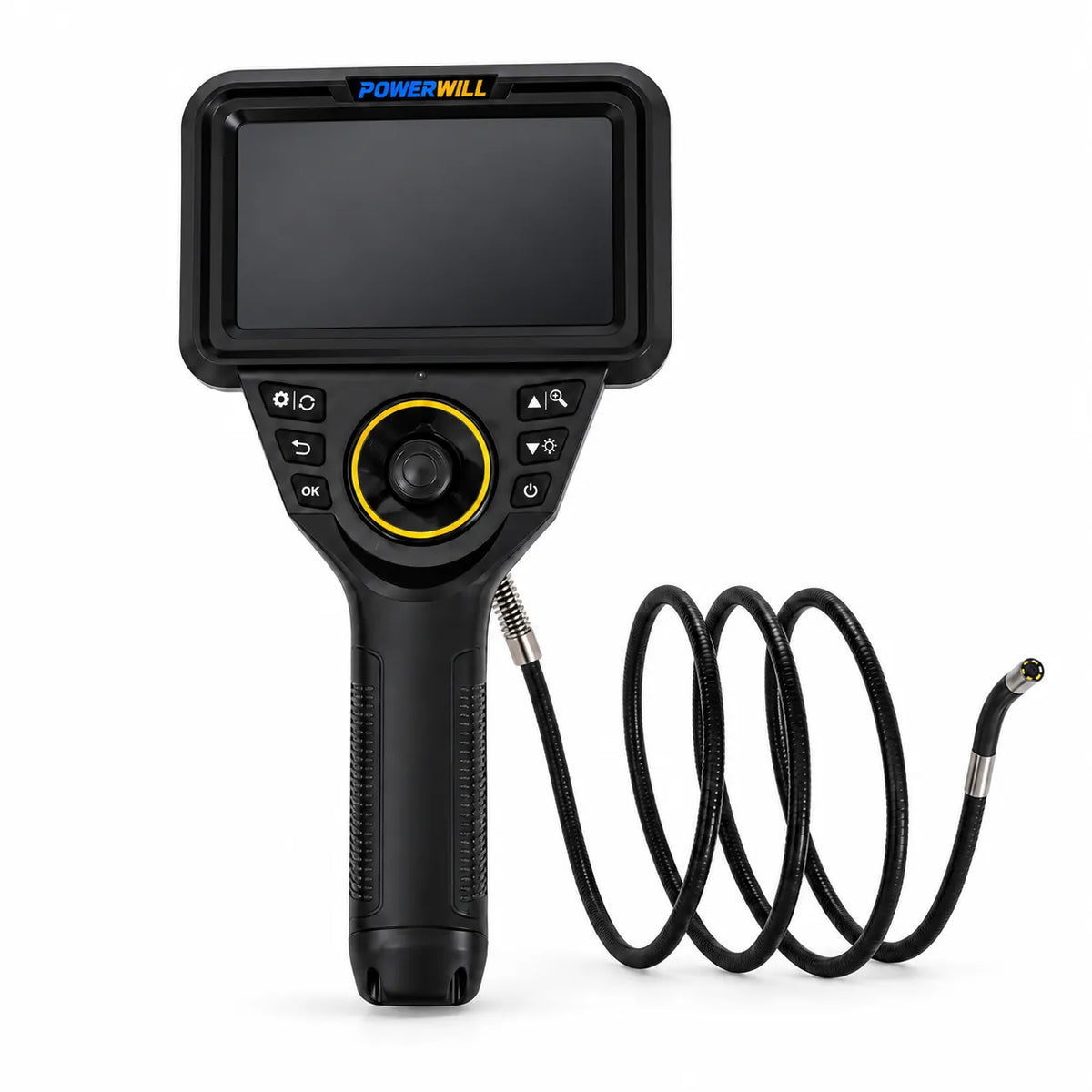

Powerwill PW506 (MA506) 4-Way Articulating Borescope – 5-Inch IPS, 6.2 mm Probe
Review the specifications below and request a quote for your preferred configuration and quantity.
View SpecificationsProduct Specifications
Four-way articulating inspection borescope with a 5-inch IPS display and 6.2 mm camera probe. Capture photos and videos and steer the probe with the joystick.
Display and Imaging
| Catalog model | PW506 |
|---|---|
| Manual model | MA506, single-camera model |
| Display | 5.0-inch IPS; 480 × 854 pixels |
| Saved photo/video resolution | 1920 × 1080 pixels (FHD) |
| Selectable recording resolutions | FHD 1920 × 1080; HD 1280 × 720; VGA 640 × 480 |
| Field of view | 90° ± 3° |
| Depth of field | 15–100 mm / 0.59–3.94 in |
Probe
| Probe diameter | 6.2 mm / 0.24 in |
|---|---|
| Articulation | Four-way steering; 360° directional control |
| Steering radius | Approximately 30 mm / 1.18 in |
| Probe protection | IP67 camera probe; handheld unit is not waterproof |
Power and Storage
| Memory card | microSD (TF) |
|---|---|
| USB input | USB-C, DC 5 V / 2 A |
| Battery | 3.7 V / 18.5 Wh |
| Operating time | Approximately 7 hours; actual runtime varies with use |
| Operating environment | -10°C to 50°C / 14–122°F; relative humidity below 90% |
| Temperature protection | 80°C / 176°F warning; 90°C / 194°F black screen; camera image returns at 70°C / 158°F |
