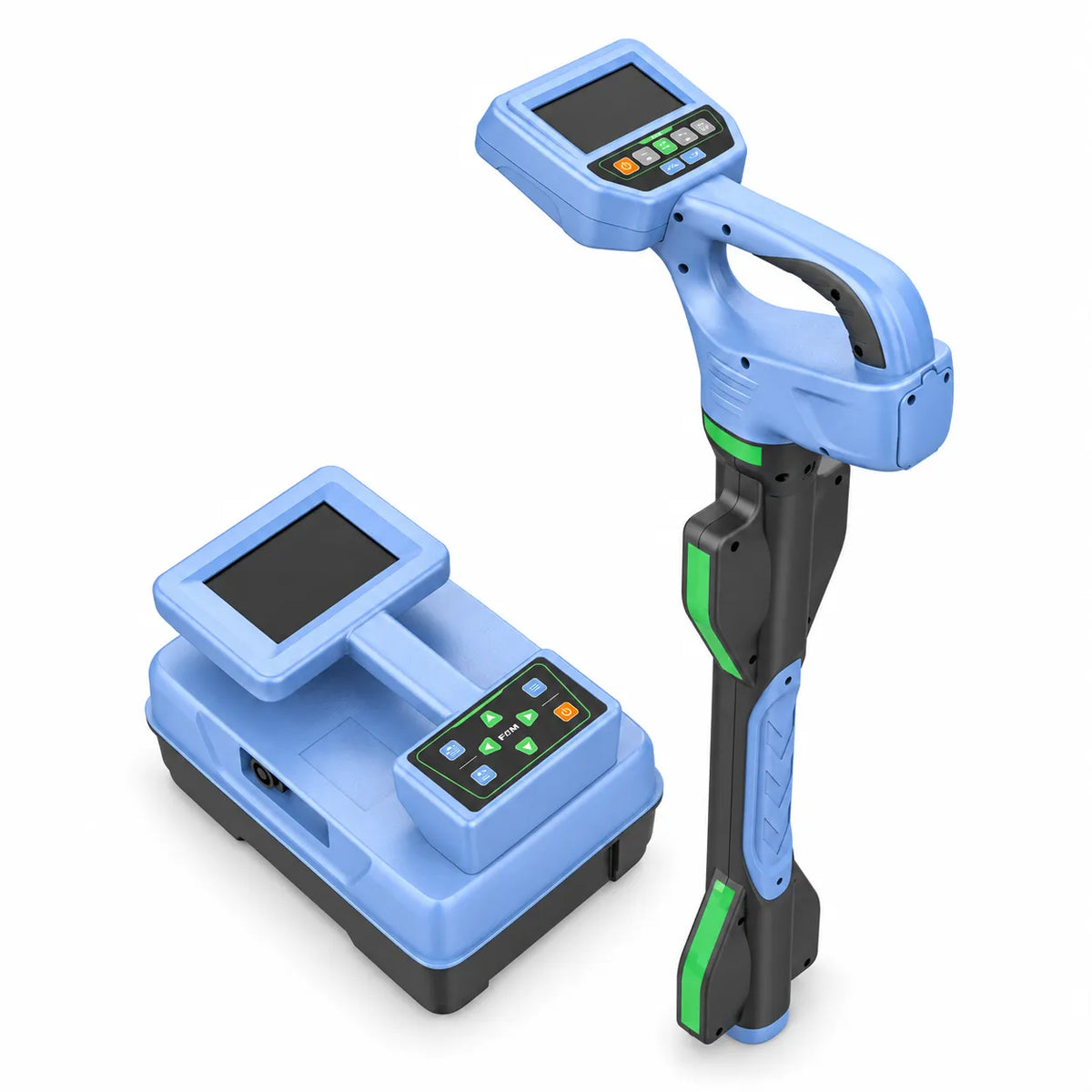

Powerwill PW001 Pipe and Cable Locator with Transmitter and Receiver
Review the specifications below and request a quote for your preferred configuration and quantity.
View SpecificationsProduct Specifications
Pipe and cable locating system for tracing route, position, depth and current. Request the transmitter/receiver configuration and optional accessories suited to your work.
System
| Model | PW001 |
|---|---|
| Core configuration | Transmitter and receiver |
| Locating methods | Direct connection, clamp coupling and induction |
| Receiving modes | Broad peak, narrow peak and null |
| Active frequencies | 577 Hz, 640 Hz, 1280 Hz, 2.56 kHz, 3.20 kHz, 4.09 kHz, 8.19 kHz, 10 kHz, 33 kHz, 66 kHz, 82 kHz, 201 kHz |
| Passive power frequencies | 50 Hz / 60 Hz |
Receiver
| Display | 4.3-inch capacitive touchscreen |
|---|---|
| Battery | DC 7.4 V / 6400 mAh rechargeable lithium battery |
| Dimensions | Approximately 336.5 × 140.6 × 785.3 mm |
| Weight | 1.90 kg |
| Charging | DC 8.4 V / 1 A |
| Working environment | -10°C to 40°C; below 80% RH |
Transmitter
| Display | 5.6-inch capacitive touchscreen |
|---|---|
| Battery | DC 11.1 V / 12800 mAh rechargeable lithium battery |
| Output power | 10 W maximum; 10 adjustable levels |
| Direct-connect output | 150 Vpp maximum |
| Protection | Overload and short-circuit protection |
| Dimensions | Approximately 332.9 × 228.5 × 192.3 mm |
| Weight | Transmitter: 3.85 kg; transmitter clamp: 1.12 kg |
| Charging | DC 12.6 V / 1 A |
Configuration on request
| Base accessories | Coupler, test leads and ground stake, per configuration sheet |
|---|---|
| Optional accessories | Flexible coil, stethoscope and A-frame |
| Optional functions | Cable identification and ground-fault location depend on selected accessories |
